Temperature Probes – TF

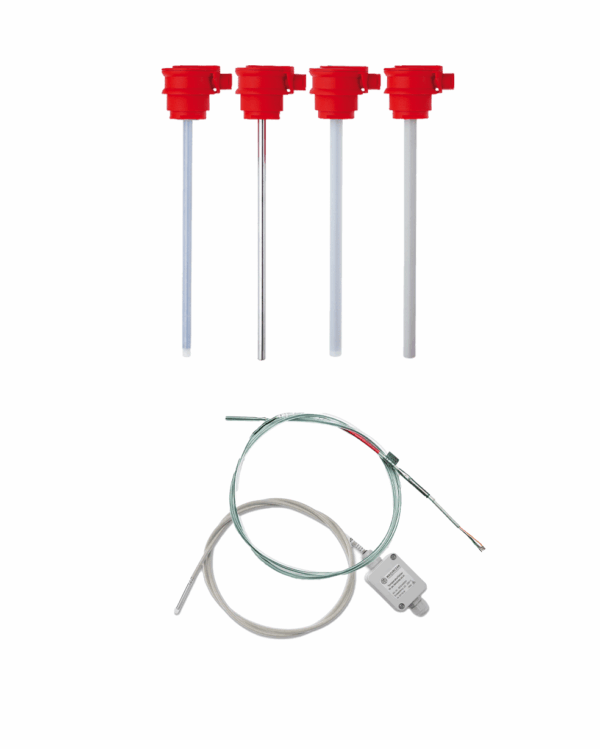

Galvatek’s TF temperature probes, incorporating PT100 sensors, offer precise and reliable measurement for the regulation and monitoring of liquid temperatures in the most demanding industrial environments. Available with a rigid tube or a flexible sheath made from highly resistant materials, they adapt to the varied needs of thermal processes.

Request a Quote

Data sheet – TF probes Accessories

Sensor: 4-wire PT100 for optimum accuracy.
Available configurations:
- Rigid sheath in stainless steel, PP, PVDF or PTFE.
- Flexible PFA sheath for restricted or corrosive environments.
Standard lengths:
- Rigid sheath: 300, 500 or 800 mm (other lengths available).
- Flexible sheath: standard length 1.6 m (other lengths possible).
Temperature range: up to 200°C depending on model.
Compatibility: Suitable for 2, 3 or 4-wire connection systems to compensate for parasitic resistances.

High accuracy: 4-wire PT100 sensors reduce interference for stable measurement.
Chemical resistance: Materials such as PTFE and PVDF for aggressive environments.
Adaptability: Available in rigid or flexible versions to meet all installation requirements.
Easy maintenance: Sensors can be replaced in the sleeve to extend service life.

Chemical industry: Precise temperature control in tanks.
Electroplating: Monitor baths to prevent freezing, crystallization or overheating.
Water treatment: Thermal control in treatment circuits.
Pharmaceutical sectors: Use in environments requiring high precision and chemical resistance.

Standards: Conforms to DIN EN 60751 specifications for PT100 sensors.
Reliability: Resistant to aggressive chemical environments and high temperatures.
Safety: Robust design for consistent performance in extreme conditions.

Additional Resources

Find the installation manual for the Temperature Probes - TF.

Options and Accessories

Universal key

Assembly Key SB for BC Head

For opening the LC terminal box and the cable gland.

SL Mounting Key for LC Head

Red head material: PP, ref. LC - White head material: PVDF, ref. LC/L

LC Terminal Box

Red head material: PP, ref. BC White head material: PVDF, ref. BC/L

BC Terminal Box

For securing the immersion heater in tank cross-members, recommended for high-temperature liquids or those with high vapor release. Bore diameter: 70 to 76 mm. Material: EPDM

HM Mounting Sleeve for BC Head

Allows installation in confined spaces on tank crossbeams bore diameter 63 mm Material: EPDM

ML Mounting Sleeve for LC Head

Enables installation with a reduced footprint on tank crossbeams, bore diameter from 87 to 90 mm - Material: EPDM

EM Mounting Sleeve for BC Head

Fixed by screws on the tank rim, the terminal box easily slots in For immersion heaters with LC head Material: PP

HL Support for LC Head

Secured by screws on the tank rim, the terminal box easily slots in. For immersion heaters with a maximum immersion tube length of 800 mm. Material: PP

HB Support for BC Head
