Standard Heating Blanket – 630 Range

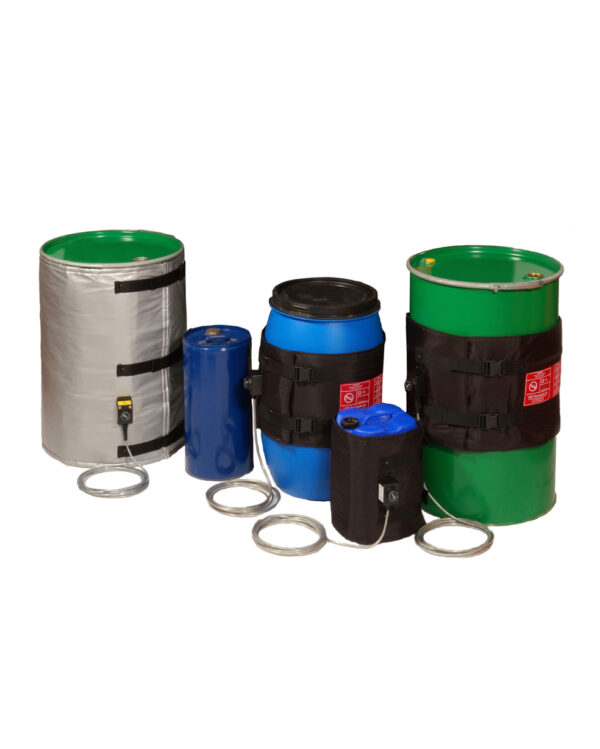

Standard Heating Blanket 630 Range

Standard Heating Blanket – 630 Range

The 630 range of standard industrial heating blankets offers an efficient and versatile solution for temperature maintenance and heating of plastic or metal drums from 25 to 220 liters. Designed for practical use and optimal performance, this range meets the diverse needs of the industry.

Request a Quote
Technical data – Standard heating blanket
  • Capacity: 25 to 220-litre drums
  • Materials :
    • Outer face: Polyurethane-coated polyamide substrate, reinforced with a nylon 66 base
    • Interior: Polyester or siliconized glass fabric (according to specifications)
    • Insulation: High-density fiberglass
  • Fastening system: Adjustable with quick-lock clip
  • Degree of protection: Splash-proof
  • Power: Varies according to model (200W to 2X1300W)



  • Réf 630101 200 W 25 l 870-1020 mm / 400 mm 0-90°C
  • Réf 630103 300 W 25 l 870-1020 mm / 400 mm 0-90°C
  • Réf 630104 460 W 25 l 870-1020 mm / 400 mm 0-160°C
  • Réf 630201 250 W 50 l 1100-1250 mm / 460 mm 0-90°C
  • Réf 630202 400 W 50 l 1100-1250 mm / 460 mm 0-90°C
  • Réf 630203 640 W 50 l 1100-1250 mm / 460 mm 0-160°C
  • Réf 630301 400 W 100 l 1400-1650 mm / 370 mm 0-90°C
  • Réf 630302 650 W 100 l 1400-1650 mm / 440 mm 0-90°C
  • Réf 630303 1050 W. 100 l 1400-1650 mm / 600 mm 0-160°C
  • Réf 630401 450 W 200 l 1800-1950 mm / 440 mm 0-90°C
  • Réf 630402 1100 W 200 l 1800-1950 mm / 850 mm 0-90°C
  • Réf 630403 1300 W 200 l 1800-1950 mm / 850 mm 0-160°C
  • Réf 630408 2×1300 W 200 l 1800-1950 mm / 850 mm 0-160°C
  • Quick and easy installation
  • Large contact area for uniform heating
  • Heat distribution over the entire surface of the barrel
  • Low energy consumption thanks to efficient insulation
  • Versatile use (plastic and metal drums)
  • Efficient replacement for traditional heating belts
  • Temperature maintenance for industrial products
  • Heating liquids in drums
  • Chemical and petrochemical industries
  • Food industry
  • Water treatment
  • Degree of protection: IP40.
  • Class 2 device (double insulation)

Additional Resources

Find the installation manual for the Standard Heating Blanket - 630 Range.

Options and Accessories

Mechanical Thermostat Heating Base
Faster heating for plastic or metal drums. Can be used in conjunction with a heating blanket, a silicone heating belt, or an insulating cover - ref: 560401

Mechanical Thermostat Heating Base

Insulating Cover for 200l Drum
Thermal insulation of the drum after using the heating blanket Not to be used in conjunction with a heating jacket but can be used simultaneously with a base Ref: 690402

Insulating Cover for 200l Drum

Digiheat Heating Base
Chauffage plus rapide pour fût plastique ou métallique. Peut être utilisé en même temps que la couverture ou la ceinture chauffante silicon réf : 660402

Digiheat Heating Base
