Flat Immersion Heaters – A-Mount with Frost Protection Feet

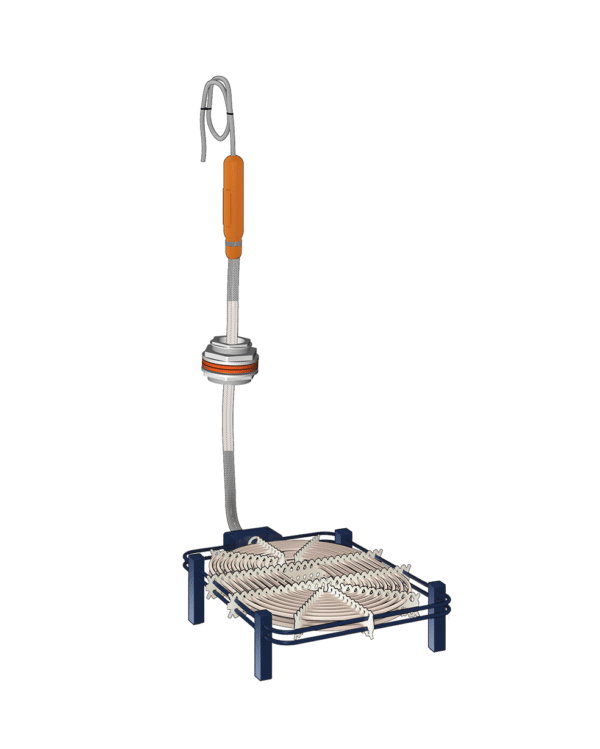

P30aj with Feet and Cable Gland

Flat Immersion Heaters – A-Mount with Frost Protection Feet

The Galvatherm® flat immersion heater – A-Mount with feet is designed for the frost protection of storage tanks, with or without retention. Its flat design, large heat exchange surface, and foot configuration allow for simple and efficient installation, directly through the inspection hatch with a minimum diameter of 500 mm, even on a full tank. It is an ideal solution to protect your volumes sensitive to low temperatures, completely autonomously.

Request a Quote
Data sheet – A-mount immersion heaters + frost protection feet
  • Power: particularly suitable up to 6 kW.
  • Materials: PP, PVDF, FEP-coated or uncoated stainless steel frame.
  • Feet: PP, PVDF, PTFE or stainless steel.
  • Heating cable: Teflon® FEP insulated, mounted on coated metal frame.
  • Standard configuration: For immersion heaters P30, P40, P90.
  • Quick installation: via inspection hatch (manhole Ø 500 mm minimum), no need to empty the tank.
  • Optimized mounting: support feet on each side of the heating section for perfect stability at the bottom of the tank.
  • Compact, high-performance solution: Suitable for volumes requiring constant frost protection.
  • Frost protection for storage tanks, with or without drip tray.
  • Safety heating for sensitive fluids in the food, chemical and environmental sectors.
  • On-site use in winter conditions or in unheated buildings.
  • Complies with EN 60519-1/2.
  • Optional: Teflon® FEP-coated PT100 sensor mounted directly on immersion heater.
  • Cable gland for non-heating cable: improves sealing and durability in demanding conditions.

Additional Resources

Find the installation manual for the Flat Immersion Heaters - A-Mount with Frost Protection Feet.

Installation instructions Galvatherm

Options and Accessories

Ø75 Mm Cable Gland
Allow for 300 mm clearance on length H (mounting height on N), PP ref: PEPP, PVDF ref: PEPF

Ø75 Mm Cable Gland

Cable Extension
Power cable C of type HO5 VV-F or HO7 RN-F / Non-heating cable N for tank outlet.

Cable Extension

Feet for A
PP or PVDF feet for tank bottom installation (standard height 50 mm) - PP ref.: PIPP, PVDF ref.: PIPF

Feet for A

Teflon-sheathed PT100 Probe
Factory-mounted on the unit Closed tanks: the probe passes through the same cable gland as the immersion heater Unlimited length

Teflon-sheathed PT100 Probe
