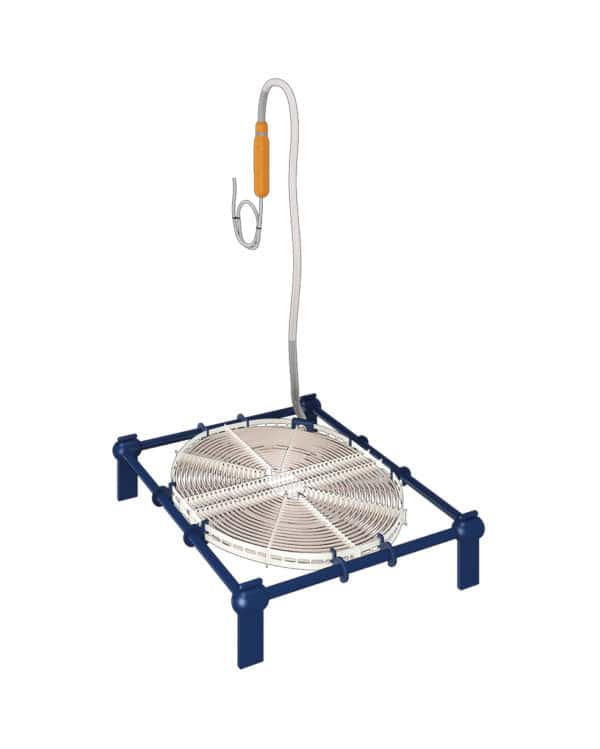

Flat Immersion Heater – F-mount + Feet

Flat Immersion Heater – F-mount + Feet

The Galvatherm immersion heaters® of flat type – F-mount with feet are universal “all-plastic” models, specifically designed for high power outputs ranging from 6 kW to 15 kW. Their robust design and stable bottom-of-tank installation offer an ideal solution for large industrial tanks.

Request a Quote
  • Power: Available from 1 kW up to 15 kW.
  • Materials: Rigid structure in Ø20 mm PP or PVDF rod, FEP or PFA fluoropolymer-coated heating cable.
  • Mounting: Suitable for bottom-mounted installation with feet.
  • Standard configuration: Available with P30, P40 and P90 immersion heaters.
  • Optimum stability: sturdy feet ensure safe, efficient positioning at the bottom of the bowl, even at high power levels.
  • Universal modularity: designed to adapt to a variety of installation configurations, on the edge or at the bottom of the tank.
  • Increased robustness: the rigid structure ensures reliable, long-lasting performance, even in demanding environments.
  • Chemical industry: Heating of chemical baths in large tanks.
  • Water treatment: Efficient temperature maintenance and heating of liquids.
  • Industrial heating: Ideal solution for large tanks requiring temperature maintenance or frost protection, with stable installation at the bottom of the tank.
  • Meets the requirements of EN 60519-1/2

Additional Resources

Find the installation manual for the Flat Immersion Heater - F-mount + Feet.

Installation instructions Galvatherm

Options and Accessories

Ø75 Mm Cable Gland
Allow for 300 mm clearance on length H (mounting height on N), PP ref: PEPP, PVDF ref: PEPF

Ø75 Mm Cable Gland

Cable Extension
Power cable C of type HO5 VV-F or HO7 RN-F / Non-heating cable N for tank outlet.

Cable Extension

Removable Protector for F
Perforated plastic protector PP or PVDF. PP ref: PRPPP PVDF ref: PRPPF

Removable Protector for F

Stands for F
PP or PVDF stands for tank bottom installation (standard height 100 mm) PP ref: PIPP PVDF ref: PIPF

Stands for F
