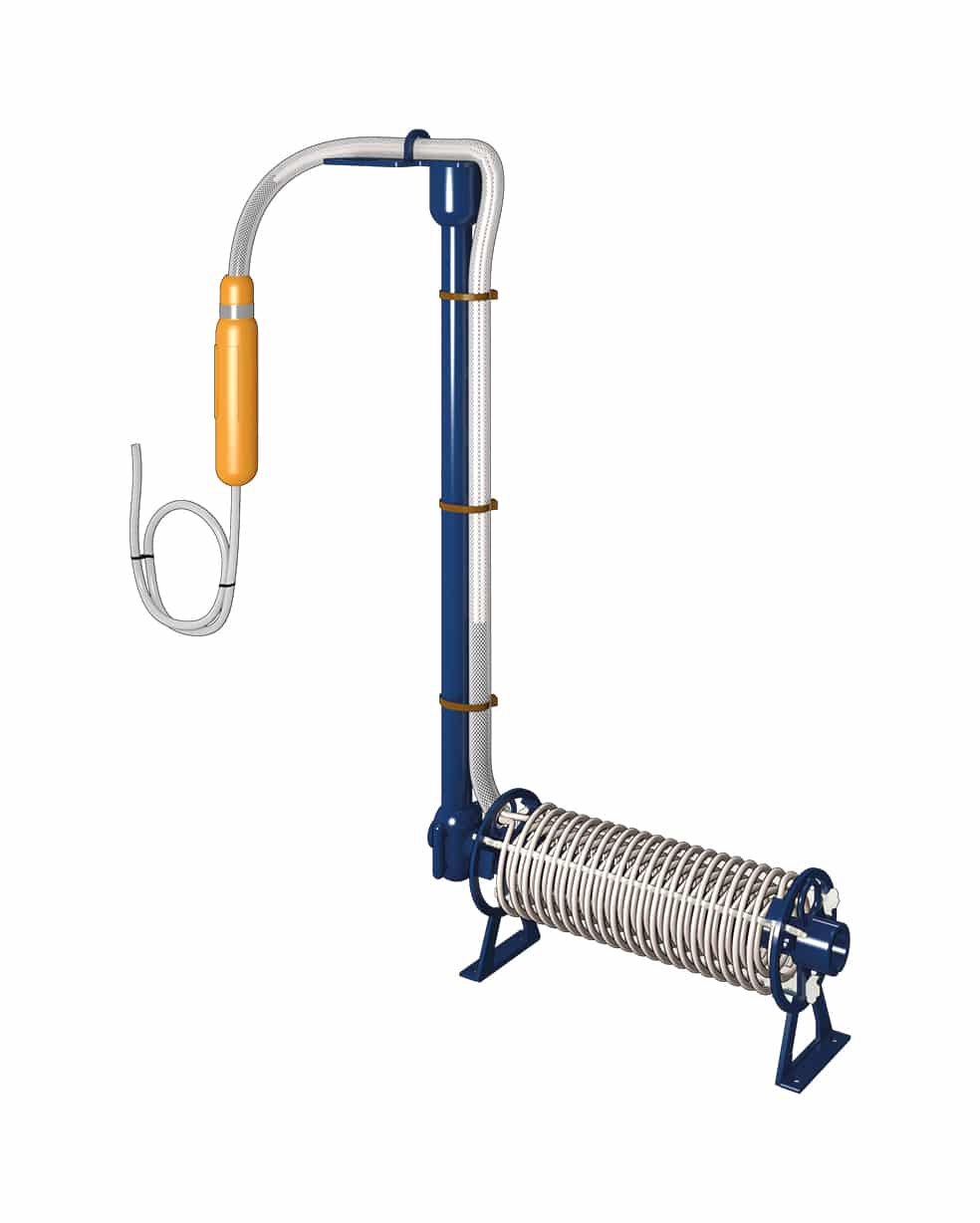

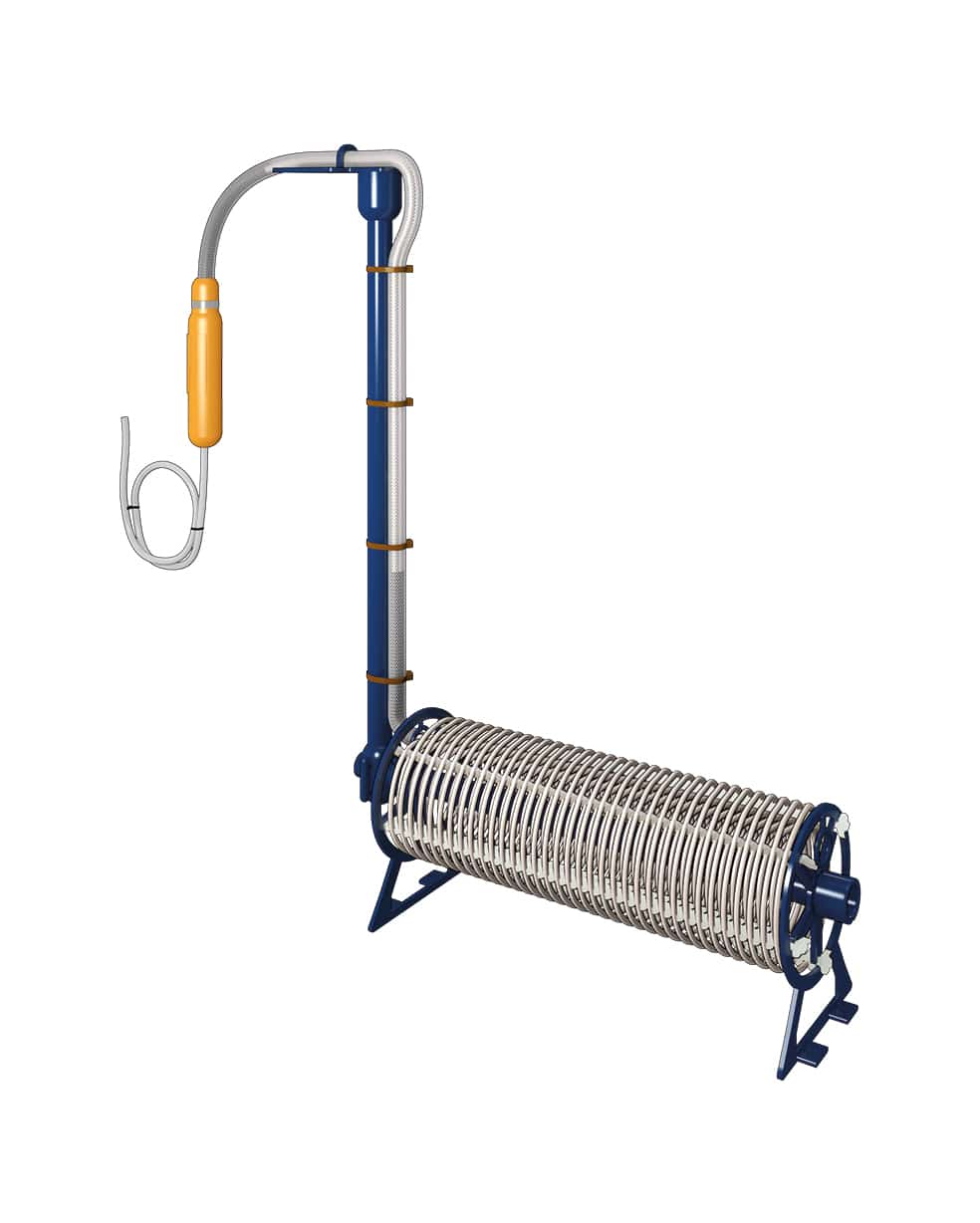

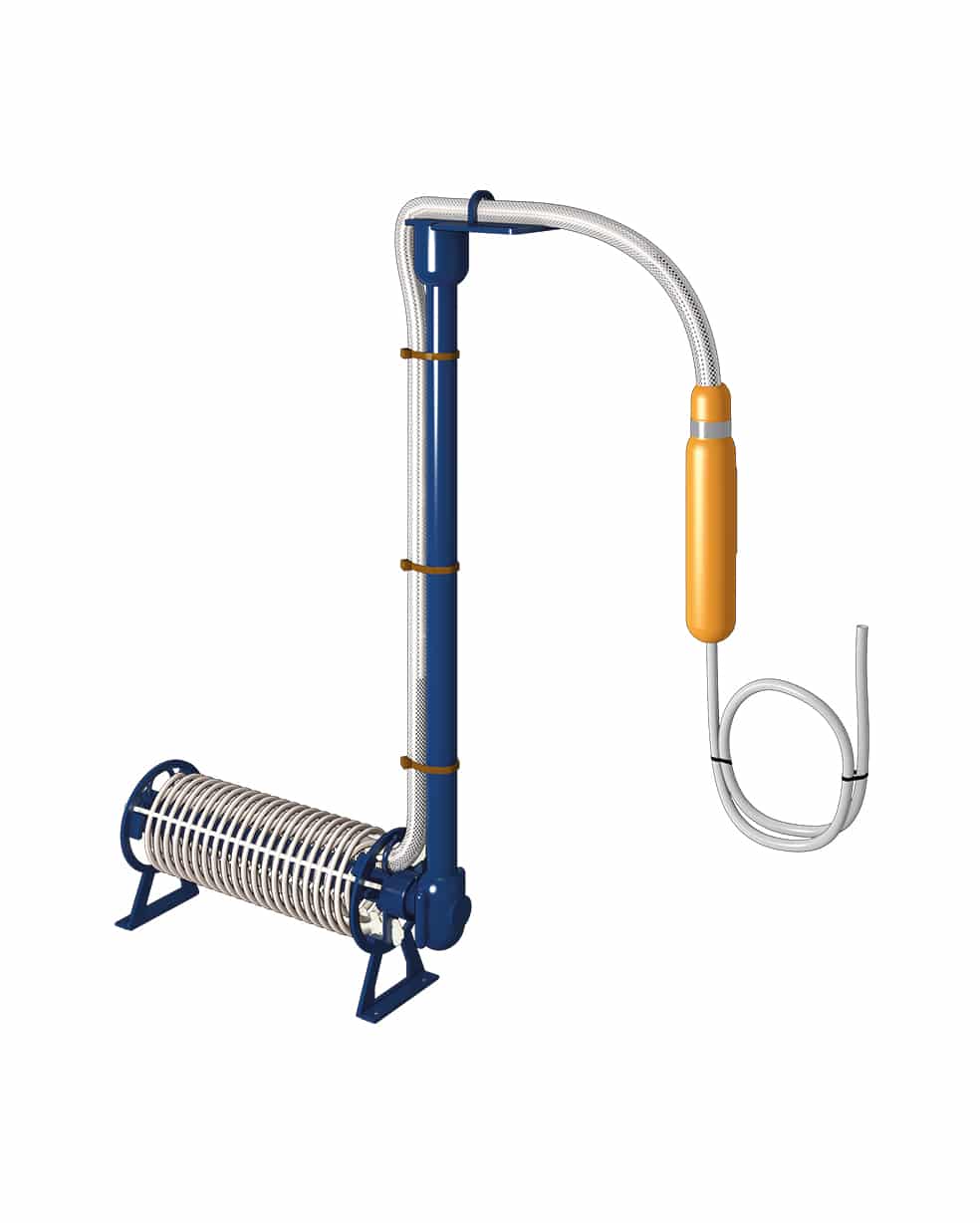

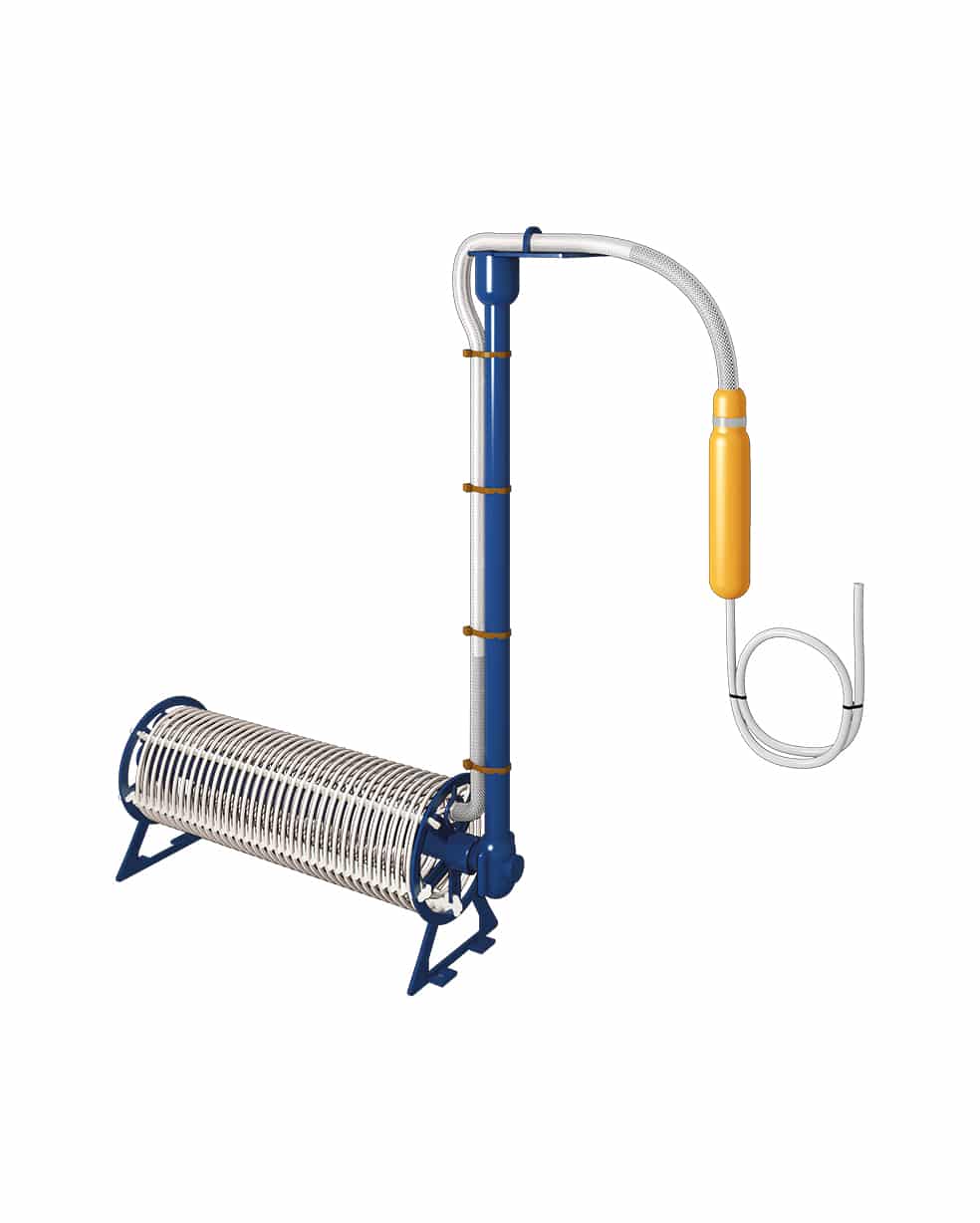

Cylindrical Immersion Heater – P-Mount

Cylindrical Immersion Heater – P-Mount

Galvatherm® cylindrical immersion heaters – P-Mount type are ‘all-plastic’ models designed for power outputs up to 15 kW. They feature integrated feet to elevate the heating zone from the bottom of the tank, thereby providing an efficient heating solution.

Request a Quote
Data sheet – P-mount cylindrical immersion heater
  • Power: up to 15 kW, particularly suitable for high-power applications.
  • Available in 85 mm and 125 mm diameters.
  • Materials: FEP or PFA fluoropolymer-insulated heating cable mounted on a PP or PVDF plastic core (ø 20 mm).
  • Installation: Designed for installation at the bottom of the tank, with integrated feet to raise the heating section.
  • All-plastic model: lightweight, durable design, ideal for use in a variety of environments.
  • Raised heating zone: Integrated feet prevent direct contact with the tank bottom, improving heating efficiency.
  • Sturdiness and durability: use of resistant plastics to guarantee long life and chemical resistance adapted to industrial conditions.
  • Installation flexibility: Adapted to different tank configurations, offering great versatility with a custom-made, non-heating rigid riser.
  • Heating of liquids in industrial tanks, tank bottom installation.
  • Specific applications for chemical baths
  • Water treatment
  • Meets the requirements of EN 60519-1/2

Additional Resources

Find the installation manual for the Cylindrical Immersion Heater - P-Mount.

Installation instructions Galvatherm

Options and Accessories

Ø75 Mm Cable Gland
Allow for 300 mm clearance on length H (mounting height on N), PP ref: PEPP, PVDF ref: PEPF

Ø75 Mm Cable Gland

Cable Extension
Power cable C of type HO5 VV-F or HO7 RN-F / Non-heating cable N for tank outlet.

Cable Extension

Removable Protector
Perforated plastic mesh protector, in PP only for 85 and 125 mm diameter - PP ref: PRCPP

Removable Protector
