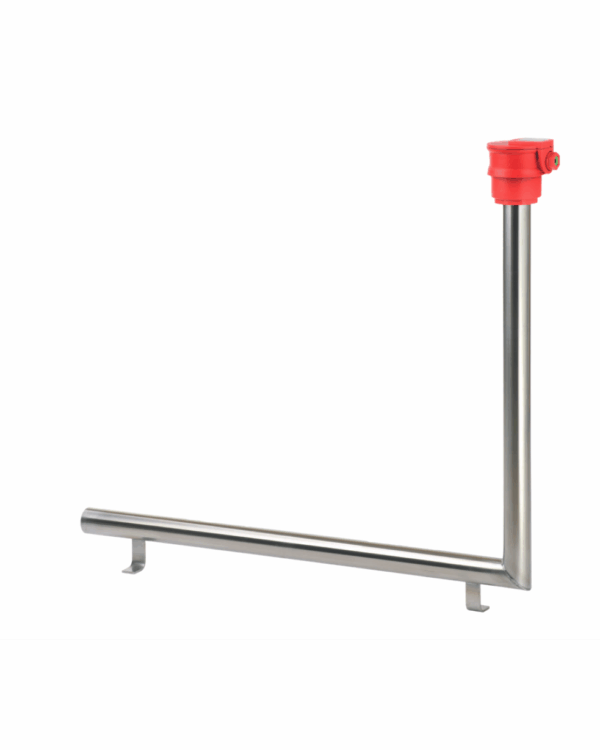

Angular Immersion Heaters – Rotkappe® Range

Angular Immersion Heaters – Rotkappe® Range

Rotkappe® angular immersion heaters are ideal heating devices for tanks or vats containing low or fluctuating liquid levels, especially in chemical baths. Their unique design, integrating sheathed immersion heater technology, enables efficient heating, even in specific environments such as complex industrial applications. These bottom-mounted immersion heaters ensure uniform heat distribution.

Request a Quote
  • Power: up to 11 kW.
  • Construction: Horizontal heating dip tube welded to vertical dip tube.
  • Components : Immersion tube, heating element, terminal box, cable.
  • Suitable for low heights: Ideal for tanks with little liquid.
  • Flexibility: High performance even with fluctuating liquid levels.
  • Efficiency: Optimum heating under specific conditions.
  • Heating liquids in low-height tanks.
  • Industrial applications with variable liquid levels.
  • Specific heating in chemical baths for precise industrial processes.
  • Complies with EN 60519-1/2.
  • Protection class 1.

Additional Resources

Find the installation manual for the Angular Immersion Heaters - Rotkappe® Range.

Options and Accessories

Assembly Key SB for BC Head
Universal key

Assembly Key SB for BC Head

BC Terminal Box
Red head material: PP, ref. BC White head material: PVDF, ref. BC/L

BC Terminal Box

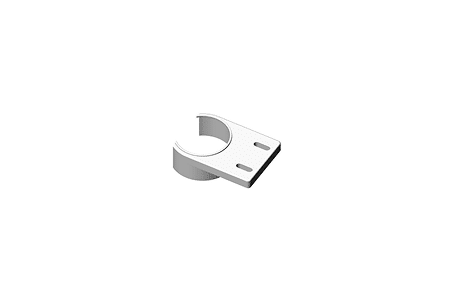

HWBL Support for Angular Profiles
For mounting the immersion heater - material: PVDF

HWBL Support for Angular Profiles

HWB Support for Angular
For mounting the immersion heater. Material: PP.

HWB Support for Angular
